KTA345

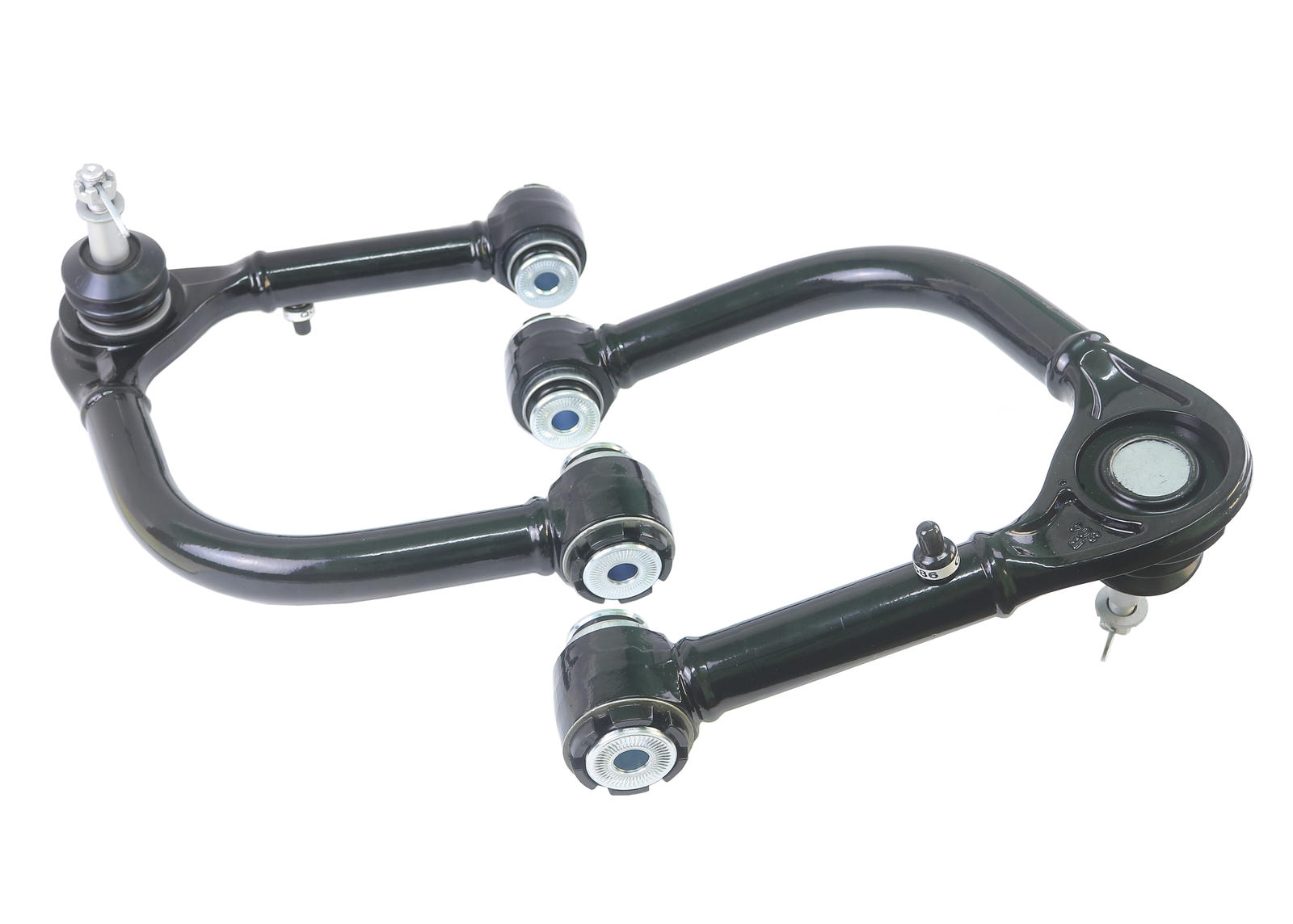

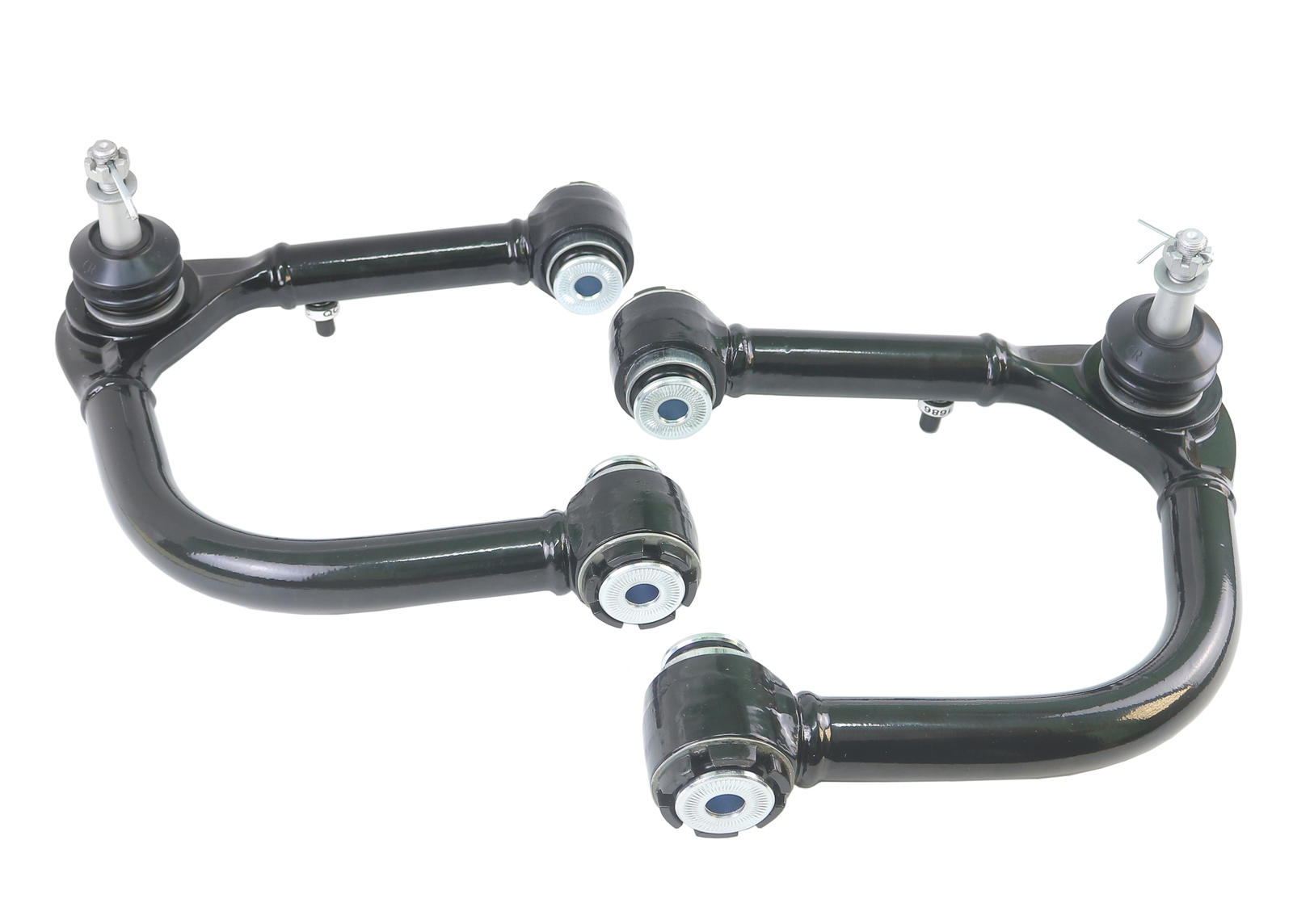

Front Upper Control Arms Fixed Offset to Suit Ford Everest PB, Ranger PY 4x4 and VW Amarok T1

Performance - fixed offset alignment correction arms
Item Price
$605.00
SKU IconSKU
KTA345
Warranty IconWarranty
3 Year / 60,000Kms
Installation Time IconInstallation Time
2 Hours
Fitting Position IconFitting Position
Front Axle
Pre-Order
Available for Preorder. Stock due on 3/7/2025.
visamastercardMaestroJCB payafter payAmerican Express payApple payGoogle payZip PayAfter payKalarna

Benefit Note:
A short fall of the modern day IFS 4wd is the adjustment range provided for successful wheel alignments, this becomes even more of an issue when the vehicle is lifted by more than 1 inch. Not only does the vehicle run into camber and caster issues, but ball joint articulation and clearance issues to the coil over strut at ride and droop height. The new Whiteline offset UCA (Upper Control Arm) is an all-in-one solution for any vehicle that has been lifted between 30mm and 70mm. Providing an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures quoted are based off an approximate 50mm/ 2 inch) along with greater clearance to the coil over strut and more articulation of the arm by virtue of new maintenance free GIIRO bushing technology.

*All prices shown on the Whiteline website include GST. You will not be charged any additional fees related to tax.
